IdentiCapture - iFrame

This section explains how to embed LEM Verify IdentiCapture in an iFrame anywhere to your website.

Step 1 - Add the StartVerification function

Add the StartVerification function in a <script> tag in the <head> tag:

var startVerification = () => {
	const params = {
    	accountId: '<AccountId>',
    	sessionId: '<SessionId>',
    	logoUrl: '<logo URL>',
  		logoHeight: '<Logo Height>px',
   		bgColour: 'ffffff',
    	bgImage: 'none',
    	lang: 'en',
      noBorders: true
  	}

	window.onmessage = (event) => {
		console.log(`Event message from iframe: [event code]:${event.data.code} [event name]:${event.data.name}`);
	};

	document.getElementById('iframe').src = `https://lemverify.co/?acc=${params.accountId}&sessionId=${params.sessionId}&--img-logo=url(${params.logoUrl})&--img-logo-ht=${params.logoHeight}&--bg-color=${params.bgColour}&--bg-img=${params.bgImage}&locale=${params.lang}&noborders=${params.noBorders}`;
	document.getElementById('iframe').classList.add('iframe')
};

The recommended params for a simple integration are as follows, giving a white background:

const params = {
  accountId: '<AccountId>',
  sessionId: '<SessionId>',
  bgColour: 'ffffff',
  noBorders: true
}

URL Parameters

Parameter	Required	Type	Comments
accountId	Yes	String	The AccountId that can be obtained from the Account Settings in your LEM Dashboard.
sessionId	Yes	String	The SessionId obtained via the API for the verification
logoUrl	Optional	String	The https URL of the logo
logoHeight	Optional*	String	The height value measured in pixels
bgColour	Optional	String	The background hex colour value, for example a white background would have a value `ffffff`
bgImage	Optional	String	The https URL of the background image
lang	Optional	String	Default is `en`. Acceptable values are: `en` `de` `fr` `pt` `it` `es` `zh`
noBorders	Options	Boolean	Default is `false`. Set to `true` if you don't wish to have the shadow border around the iframe.

Event Messages

The event messages are fired through the window.onmessage function. An example of this as follows:

window.onmessage = (event) => {
  console.log(`Event message from iframe: [event code]:${event.data.code} [event name]:${event.data.name}`);
};

Event	Code	Comments
acceptTerms	100	Event once the user accepts the Terms & Conditions
selectDocMethod	200	Event once user selects the Document
selectCountryMethod	200	Event once user selects the Country of origin for selected Document. Only applies to all documents except for Passports
userCapturedDocumentFrontStart	300	Event once the document capture process starts for the front document
userCapturedDocumentBackStart	300	Event once the document capture process starts for the back document
userDocumentFileSendComplete	300	Event once the document capture process has been completed
livenessStarted	400	Event once the Liveness process starts
livenessEnded	400	Event once the Liveness process has been completed
userCapturedSupportDocument	500	Event once the supporting documents has been uploaded
addressSelect	600	Event once the address has been selected
finishedAndThanks	700	Event once the Finish button is pressed

Step 2 - Add the iFrame tag

Add the <iframe> tag to the page where you would like for it to display
NOTE: The attributes of the <iframe> tag is very important

<iframe id="iframe" allow="camera;microphone" src="" title="description"></iframe>

Attributes:
id - the ID of the iFrame, set to iframe
allow - The for the browser to allow camera and microphone permissions
src - The source of the iFrame, set to blank, the source is dynamically created in the previous step

Step 3 - Add the iFrame styling

In a <style> tag, add the following CSS to style the iFrame:

iframe {
    margin: 10px;
    border: none;
    width: 0;
    height: 0;
}

.iframe {
    width: 411px;
    height: 731px;
    border-radius: 20px;
}

Step 4 - Finishing Touches

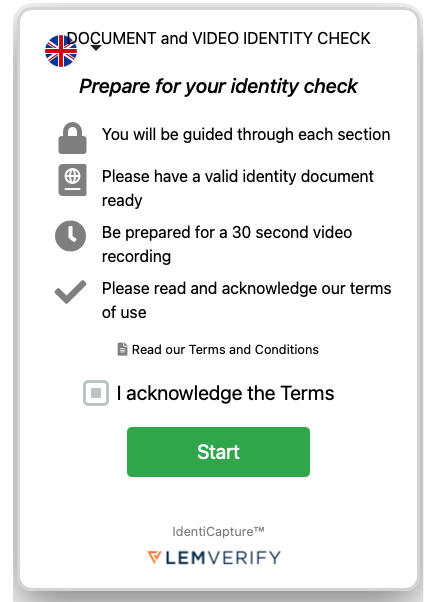

Once Steps 1 - 3 has been completed, your iFrame should somewhat resemble the image thats shown below:
